  • SKU: EFC-1800
  • Availability: Out of stock


  • Barcode:

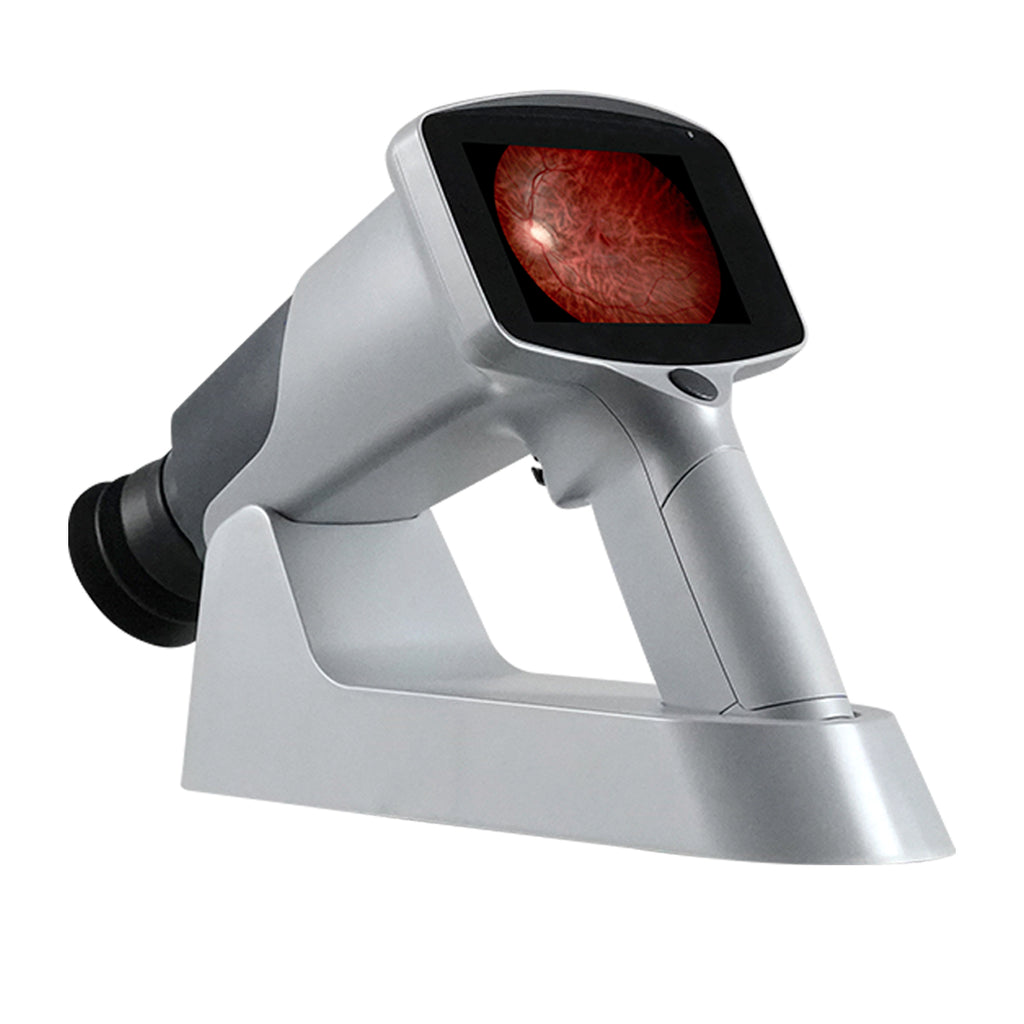

EFC-1800 - Best portable Non Mydiatric Hand Held Fundus Camera for very high resolution retinal images at a fraction of a secod. Extremely user friendly device with Auto freeze function when it is perfectly in focus. With minimum pupil diameter required is just 3 mm with 9 fixation targets, the Fundus Camera EFC-1800 covers 85 degree field of view.

Type Non-mydriatic
Field of View 45 degrees
Camera Sensor Resolution 12M Pixels
Fixation Targets 9xLED, Internal
Minimal Pupil Size 3.5 mm
llumination White LED & IR LED
Focusing Manual/Automatic
Focus Range -20D~+20D
Display 4.3 inch Touch Screen
Image Format JPEG
Type of Image Color
Memory Micro SD card. Maximum 32G
Data Connectivity WIFI/USB
Power Supply Rechargeable battery 3.7V/3400mAh x 2
Working Time 3 hours of continuous work
Charging Station 100-240V~,0.5A,50/60Hz
Power Supply 5V DC,2A

Dimensions 280mm×130mm×150mm
Weight 1.8lb

Click here to see the brochure

Auto Split Focusing Technology Millisecond Focusing Speed

EFC-1800 adopts Auto Split Focusing technology, focusing speed reaches milliseconds.
It avoids the out-of-focus of the fundus image caused by the patient's movement during shooting,effectively improve the image quality and reduce the requirements for cooperation between operators and patients.

High Resolution

EFC-1800 provides high resolution fundus images,image resolution is up to 12 Mega Pixels.
It makes the diagnosis of early lesions more accurate and also essential for diagnosing retina disease,such as diabetic retinopathy,glaucoma and macular degeneration.


The minimum pupil diameter of EFC-1800 is φ3.5mm. 20 minutes of mydriatic waiting time is saved, and the risk of mydriasis to the patient is avoided.

9 Fixation Targets

With 9 fixation targets, EFC-1800 covers 85° field of view of the fundus and supports the examination of early peripheral lesions of the fundus. With 45 ° field of view , a single central fundus image can be taken to meet the needs of fundus disease screening.

Smart Touch Operation

4.3 inch full-touch LED screen brings a smarter operating experience. Doctors can zoom the image at any time to check the details of the fundus, and can also easily slide the screen to edit and view the case.

Real-time Uploading

EFC-1800 supports real-time synchronization between fundus images and Patient Management software through WIFI connection.
