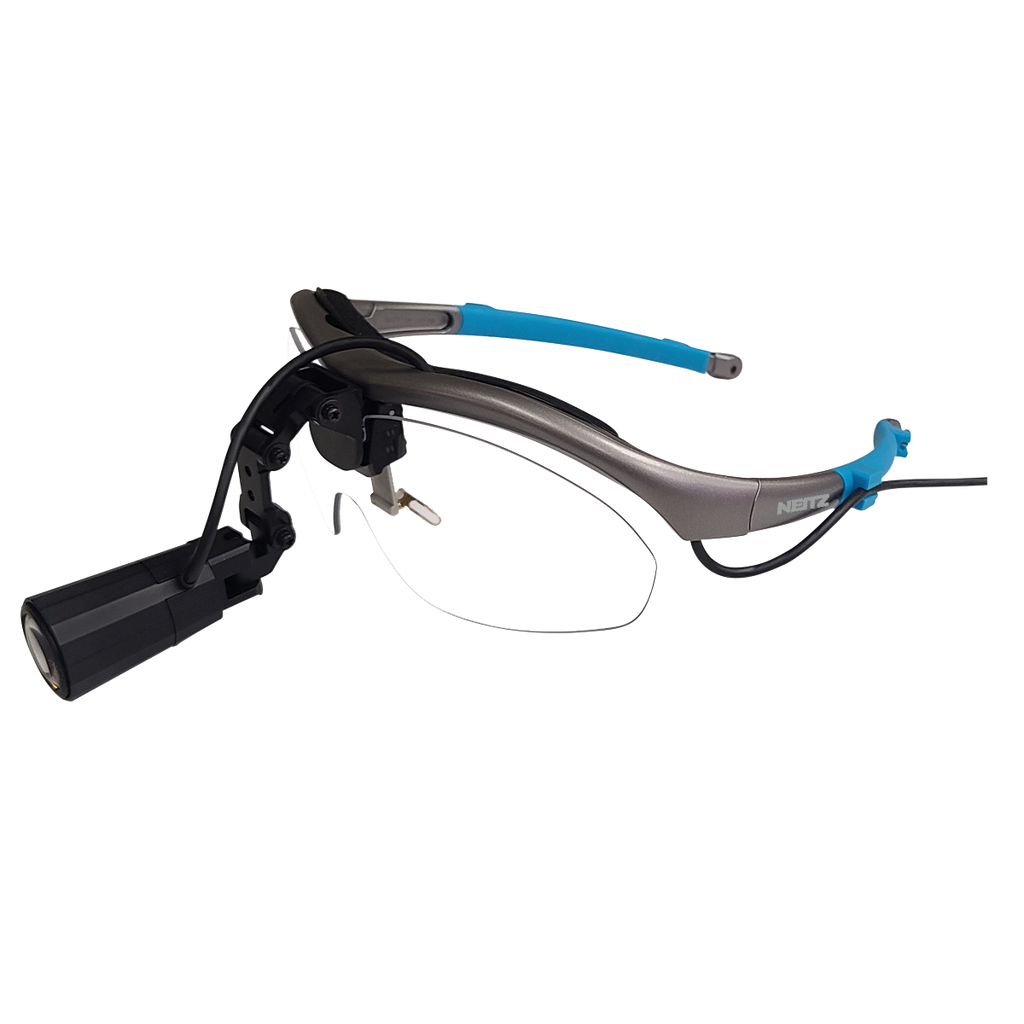

Bright, clear, and reliable illumination is crucial to ensure accurate observations, ease of operation, and patient care when using surgical loupes and other optics during ophthalmic practice. With over a half-century of experience manufacturing the finest in medical optics, Neitz fully understands these needs. That's why they created the award-winning NSI-X 100, an 84,000 LUX LED surgical loupe illuminator with industry-leading brightness and exceptional battery life.
| llluminator | |
| Light Source | White LED (Color Tone: Cool White) |
| Illumination Field Diameter (at 400 mm distance) | 3.94 in (100 mm type) |
| Dimensions (Main body) | Ø 0.9 in x 1.36 in ( Ø 23.0 mm x 34.6 mm ) |
| Weight | 100 mm type: Approx. 18g (0.67 oz.) |
| Light Intensity (approximately) (at 400 mm distance) | Low (Level 1) 100 mm type: 12,000 lx Medium (Level 2) 100 mm type: 19,000 lx High (Level 3) 100 mm type: 32,000 lx |
| Light Color | White |
| Illumination Cord Length | 66.93 in (1.7 m) |
| Battery Pack | |
| Dimensions (excluding protrusions) | 3.48 (H ) in x 2.68 in (W) x O .87 in (D ) (88.5 mm x 68 mm x 22 mm) |
| Weight (excluding batteries) | 170 g (6.0 oz.) |
| Illumination Level | 3 levels (Low/Medium/High) |
| Operation Time (approximately) | 13.5 hours at Low (Level 1) Operation Time (approximately) 7. 5 hours at Medium (Level 2) 3.5 hours at High (Level 3) |
| Built-in Rechargeable Battery | Nickel-Metal Hydride (Ni-MH) battery (AA size, 4 pcs.) |
| Output Voltage | DC 3V, 2 VA |
| Input Voltage | AC100-240V, 50-60Hz, 10-15VA |
| Full Charging Time | Approx. 2.5 hours |
| AC Adaptor | |
| Input Power | AC 100 V to 240 V, 47 Hz to 63 Hz, 0.25A to 0.5A |
| Output Power | DC 9 V, 2.3 A Double Insulation Type (or its equivalent) |
| Cable Length | 48 in (1200 mm) |
| Extension DC Cable | |
| Cable Length | 79 in (2000 mm) |
